Speio an underground flower

" I wish I had a brush
To paint plum's blossoms
Along with their perfume !"

Shoha

Accurately restoring high sound level with precision, while remaining discreet, Speio introduces a subtle and communicative musicality into your environment.

The egg-shaped form resulting from the research theme of the project - Chrysalis - offers a double-benefit, a soft and harmonious design and optimal mechanical-acoustic comportment.

As if attracted by something ...

Illustration

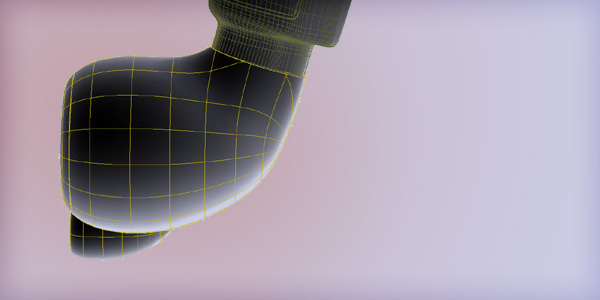

Description of the casing

The egg-shaped form of Speio allows limiting the effects of diffraction on the outside and the echoes on the inside. The body is manufactured by moulding synthetic stone or by machining a mass of natural stone (granite). The heavy weight and the great rigidity of the system results in a particularly stable mechanical base for the speakers, resulting in increased dynamics and the absence of distortion.

Illustration

Small decorative touches, like these bas-reliefs, are a part of Orythie's touch.

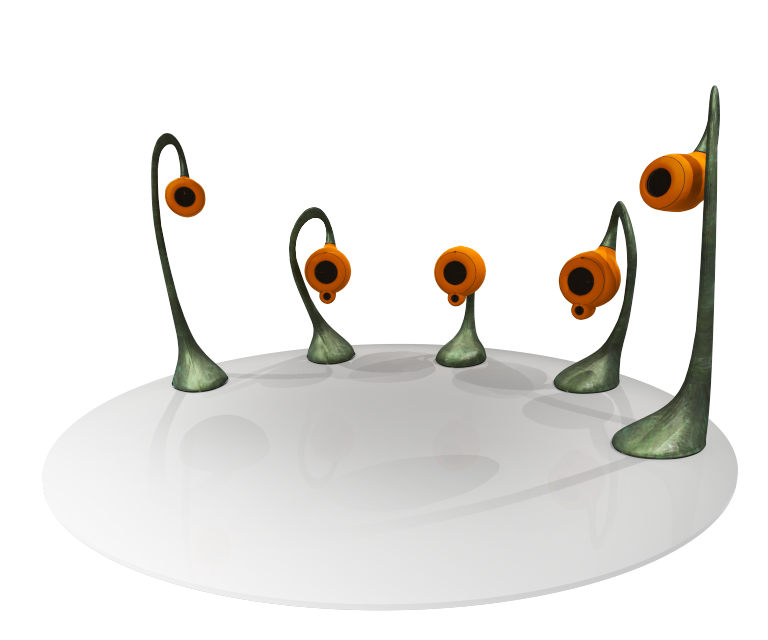

Here is a complete set of the model in 5.1, with satellite and a central speaker. The speakers should be placed following different rules, so each one is flexible.

Illustration

Technical characteristics

Speio is a 3-way speaker system, with three speakers, two of which are coaxial. The bass speaker works using the load principle bass-reflex in order to obtain an extended bandwidth with a higher power. Speio is, in a way, the cousin of Lyssianassa. The sound hole has an elliptical profile in order to maximize its efficiency and minimize air-flow noises.

illustration
Allow these pearls for your ears!

Principal and central speaker units

Bandwidth
55 - 23.000 Hertz +/-3 dB
Dispersion H x V
140 x 100 degrees
Sensitivity
97 dB / Watt at 1 Meter
Maximal power
400 Watts RMS
Maximal sound level
119 dB at 1 Meter
Nominal Impedance
8 Ohms
Number of ways
3
Treble speaker
Compression 25 milliMeter
Midrange speaker
Compression 45 milliMeter
Bass Speaker
Electrodynamic 300 milliMeter
Bass load principle
Bass-reflex - Exponential vent
Filtration
Passive or active
Frequencies of filtration
1.200 - 16.000 Hertz
Internal cables and connector
Silver-coated pure copper
Body Material
Ceramic or granite
Dimensions H x W x D
1.2 x 0.6 x 0.7 meter
Weight
95 Kilograms
Illustration

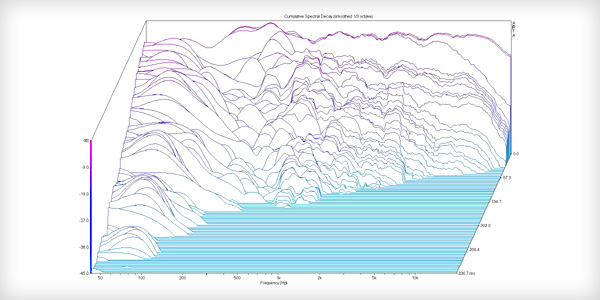

Waterfall graph in an auditorium

Satellite speakers

Bandwidth
80 - 20.000 Hertz +/-3 dB
Dispersion H x V
100 x 100 degrees
Sensitivity
94 dB / Watt at 1 Meter
Maximal power
1500 Watts RMS
Maximal sound level
114 dB at 1 Meter
Nominal Impedance
8 Ohms
Number of ways
2
Treble speaker
Compression 25 milliMeter
Bass Speaker
Electrodynamic 200 milliMeter
Bass load principle
Bass-reflex - Exponential sound hole
Filtration
Passive or active
Cutoff Frenquency
2.000 Hertz
Internal cables and connector
Silver-coated pure copper
Body Material
Ceramic or granite
Dimensions H x W x D
2.3 x 0.4 x 0.55 meter
Weight
45 Kilograms
illustration
"Nuptial dance"
