visuel enceinte acoustique
francais

Lysianassa the docile incisor

("...) Tes yeux où rien ne se révèle
De doux ni d'amer,
Sont deux bijoux froids où se mêlent
L'or avec le fer.

A te voir marcher en cadence,
Belle d'abandon,
On dirait un serpent qui danse
Au bout d'un bâton. (...")

C. Baudelaire - Le serpent qui danse

("...) Your eyes, where nothing is shown
Of bitter or sweet,
Are two cold jewels where are mingled
Iron and gold.

To see you walking in cadence
With fine abandon,
One would say a snake which dances
Around a thin baton. (...")

C. Baudelaire - The dancing snake

Lysianassa embodies the principle of its acoustic load, the transmission line, with sharpened distinction. See this tunnel, with variable sections and one length, adjusted with precision to the wavelengths diffused. This tricky technique, arduous to implement, has the advantage of reproducing profound and perfectly defined low frequencies.

Illustration

Let yourself rock!

The elegance of this speaker system is able to enhance the space to which it is dedicated. Under its light appearance, Lysianassa conceals a source of audio enjoyment that will delight you.

illustration

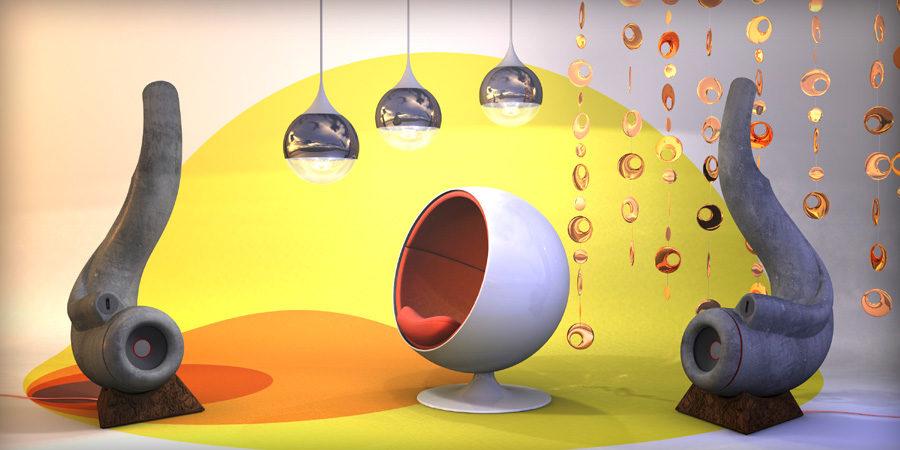

A 1970s-style interior with a contemporary touch

Description of the casing

Its shell, in moulded ceramic, can be lacquered or can imitate the various materials to adapt as well as possible to its new environment. In its standard version, the leg is machined in a burr of varied tones. Other combinations can also be imagined.

The speaker system Lysianassa is moulded. It is composed of a ceramic with mechanical properties advantageous to the sound produced.

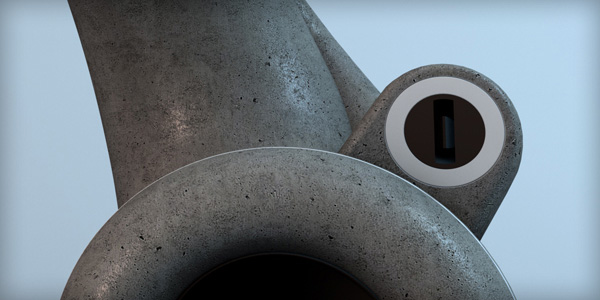

Freestone, with which the Loire castles are built, shows a rough appearance that we have hoped to capture in this unpolished concrete.

Illustration

A light version is resin is available when the weight is an important criterion (interior decoration of yachts).

Illustration

Waxed and coloured concrete gives a smoother and shinier appearance.

Technical characteristics

Lysianassa is a 3+1 - way speaker system with bass and midrange speakers in coaxial configuration and one remote high-frequency speaker. We have chosen for the bass-midrange speaker the load principle called "transmission line" in order to obtain a bandwidth adapted to the motor and as fine as possible for low frequencies.

The form of our creation is a result of the choice of its load principle. The line used therefore reflects and incarnates the wavelength, to end up with a fine and elegant speaker system.

Acoustic characteristics

Bandwidth
55 - 23.000 Hertz +/-3 dB
Dispersion H x V
140 x 100 degrees
Sensitivity
97 dB / Watt at 1 Meter
Maximal power
400 Watts RMS
Maximal sound level
119 dB at 1 Meter
Nominal Impedance
8 Ohms
Number of ways
3
Treble speaker
Compression 25 milliMeter
Midrange speaker
Compression 45 milliMeter
Bass Speaker
Electrodynamic 300 milliMeter
Bass load principle
Bass-reflex - Exponential vent
Filtration
Passive or active
Frequencies of filtration
1.200 - 16.000 Hertz
Internal cables and connector
Silver-coated pure copper
Body Material
Ceramic or granite
Dimensions H x W x D
1.2 x 0.6 x 0.7 meter
Weight
95 Kilograms

The relative position of the two speakers was optimized to permit using a passive filter

Illustration
Illustration

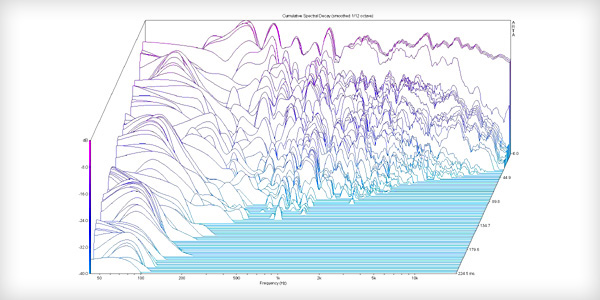

Waterfall in an auditorium

Satellite speakers

Bandwidth
80 - 20.000 Hertz +/-3 dB
Dispersion H x V
100 x 100 degrees
Sensitivity
94 dB / Watt at 1 Meter
Maximal power
1500 Watts RMS
Maximal sound level
114 dB at 1 Meter
Nominal Impedance
8 Ohms
Number of ways
2
Treble speaker
Compression 25 milliMeter
Bass Speaker
Electrodynamic 200 milliMeter
Bass load principle
Bass-reflex - Exponential sound hole
Filtration
Passive or active
Cutoff Frenquency
2.000 Hertz
Internal cables and connector
Silver-coated pure copper
Body Material
Ceramic or granite
Dimensions H x W x D
2.3 x 0.4 x 0.55 meter
Weight
45 Kilograms
